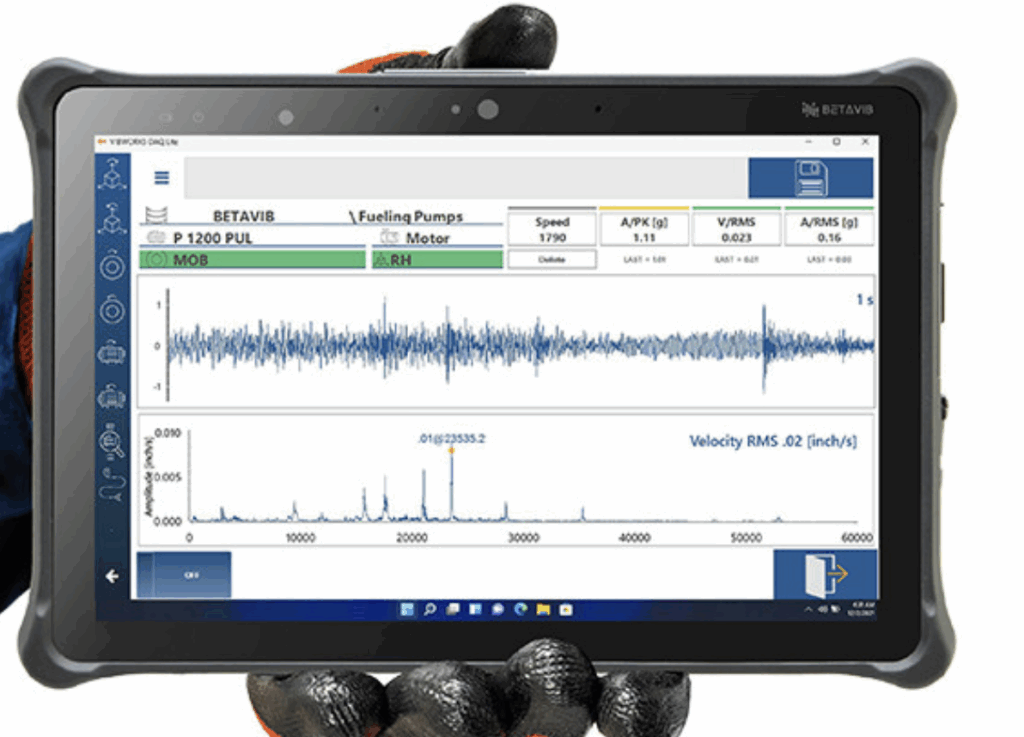

The VibWorks Collector Analyzer is BETAVIB's portable solution assets health monitoring based on vibration analysis.
The solution comes with several modules allowing you to perform reliable diagnosis and monitoring on rotating machines, in less time, less effort yet more Effeciency!
VibWorks Acquisition Time
Thanks to its innovative architecture, you are sure to have at your disposal the fastest COLLECTOR on the market.This will not only improve your efficiency, but it will allow you ,as well, to insure that your measurement was taken under the same operating conditions.
FASTER ACQUISITION
All parameters are measured in the same time and true simultaneous triax capabilities are embedded. Vibration measurements are performed in triax in a true simultaneous sampling.
SIGNAL PROCESSING
Basic and advanced tools are available for Real Time processing or post-processing. Signal processing is customizable for each point with multiple filters and indicators.
EMBEDDED DATA BASE
Maximum autonomy is guaranteed and all the historical Data is available On-Site. You can have your backups using AutoSync on the Network. create, configure, analyse and generate reports on the collector.
Unmatched Efficiency
Innovative
RealTime Audio from vibration Sensors with integrated Camera.
Manual process trending parameters and machine recognition with bar code reader.
Time Traveller
Change analysis parameters on past measurements, Re-Process your assets and reconstruct your history.
Change parametrization with no consequences on your historical data.
Automated Reports
All the Reports are generated, on the collector, in a single click (Word or PDF). Kinematics, analysis, anomalies and other valuable reports are available.
For more information, visit http://www.betavib.com/collector.html
Technical Specs
Within the same Rugged hardware platform, VibWorks Collector is fully compatible with VibWorks Balancer and VibWorks Multi-Channel Analyzer to reach higher levels of performances in your industry.
The product allows you to operate with more efficiency by performing complete analysis and multiple important tasks easily, on the field, without the need to download Data to an external PC.
Features
. Single and Triax Route based Long-time recording technology
. Vibration analysis
. Bump Test
. Order analysis and extraction
. Run up Coast down test
. 1 plane and 2 planes Balancing
. Sync between collectors and/or Server
Hardware
. 4 Channels Input, IEPE, Voltage
. Simultaneous Sample Rate 51.2 KHz/ 102.4KHz
. IEPE , Anti-aliasing filter
. 24 bits Resolution
. SSD Drive min 256Go
. 10.1 XGA sunlight-viewable LED 1920 x 1200 touchscreen
. MIL-STD-810G and IP65 certified.
. Battery Autonomy Standard: 8 hours, Long Life 15 Hours, Swappable
. Embedded Digital Camera/ Barcode Reader/Bluetooth for Real-time Audio
Single axis and true Triax Routes
. ClickOnce Machines declaration by templates
. Self-Adaptative Alarm settings by Machine/ Department/Plant
. UltraHDMonitoring
. BlueTooth RealTime Audio from Accelerometers
. Spectrum, Spectrum Env., Octaves, Narrow Bands, Octaves, Filters, Cepstrums, Hilbert...
. Interactive ColorCoded DashBoard
. Ref, PreAlarm, Alarm & Danger Levels
. Reports : Analysis, Kinematic, Anomalies by Machine/Plant
. Integrated ISO standards
. Variable Speed Machinery Analysis
. Anomalies report generation
. Smart Harmonic and lateral Cursors
. Bearings Faults cursors
. Gear mesh cursors
. Integrated Bearings Database
. Narrow Band Alarms
. Overall levels Trending
