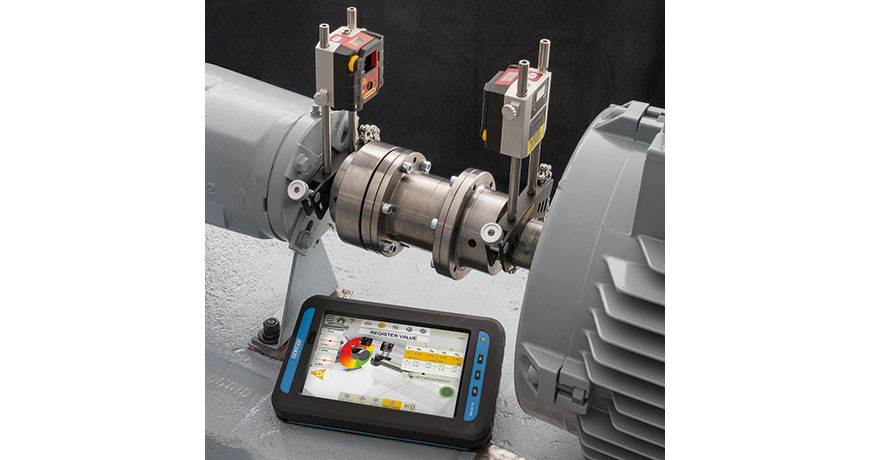

The XT550 Laser Shaft Alignment System from Easy-Laser

INTRINSICALLY SAFE

This alignment tool is exactly what you need for hazardous areas.

 The Easy-Laser’s XT550 comes with dot laser technology, allowing you to

measure large machinery and long spans. This alignment tool has all the

features of the XT660 the only difference is the XT550 is intrinsically

safe.  Align, check base twist, check bearing play, check soft foot and

easily document results.  You have your choice of several measurement

methods including continuous sweep and multi-point.  This is your

advanced measurement system for hazardous areas.

*For use in Ex-classed areas, the mobile

device you’re using must be approved for these areas. Always check for

approval labels before entering potentially explosive areas. The XT11 is

not Ex/ATEX approved.

*The XT50 measuring units are ATEX

approved which means means they comply with the Essential Health and

Safety Requirements relating to the design of products intended for use

in potentially explosive atmospheres.

Call us at 800-867-1408 to get a FREE DEMO of the Easy-Laser XT550

EX/ATEX PLATFORM FOR SHAFT ALIGNMENT

As with our Easy-Laser® XT440, XT660 and XT770, the XT550 gives you the freedom to move seamlessly between hardware platforms and perform laser shaft alignment with ease and precision on larger machines, over longer distances but intrinsically safe for potentially explosive areas.

The Easy-Laser® XT Alignment application runs on both Apple® iOS and Android™ devices*. All functions are available in a single app with programs for alignment of both horizontal and vertical machines. Also included are functions for soft foot check, thermal growth compensation and tolerance check as well as twist measurement of machine base.

The measuring units and ECOM Tab-Ex® display unit are approved in accordance with the latest ATEX directive.

*Note: For use in Ex-classed areas, the mobile device you’re using must be approved for these areas. Always check for approval labels before entering potentially explosive areas.The XT550 comes with Easy-Laser’s dot laser technology, allowing you to measure large machinery and long spans. The measuring units are approved in accordance with the latest ATEX directive, and are rated both IP66 and IP67 water and dust proof.

Top Features:

• Advanced capabilities such as coupled and uncoupled continuous sweep plus multi-point measurement modes.
• Program for Machine Trains (unlimited)
• Program for Twist/Flatness base measurement
• Cardan shaft alignment (optional cardan bracket required).
• Alignment data can be stored in the XT application and emailed directly as a PDF report including measurement data and color images.
• The intuitive user interface guides you through the measurement process
• Purchase multiple systems with various capabilities, train just once! The training costs are minimized significantly since the App interface and basic functionality is identical across all Easy-Laser XT alignment systems.
• Easy-Laser PLUS™ cloud data transfer
